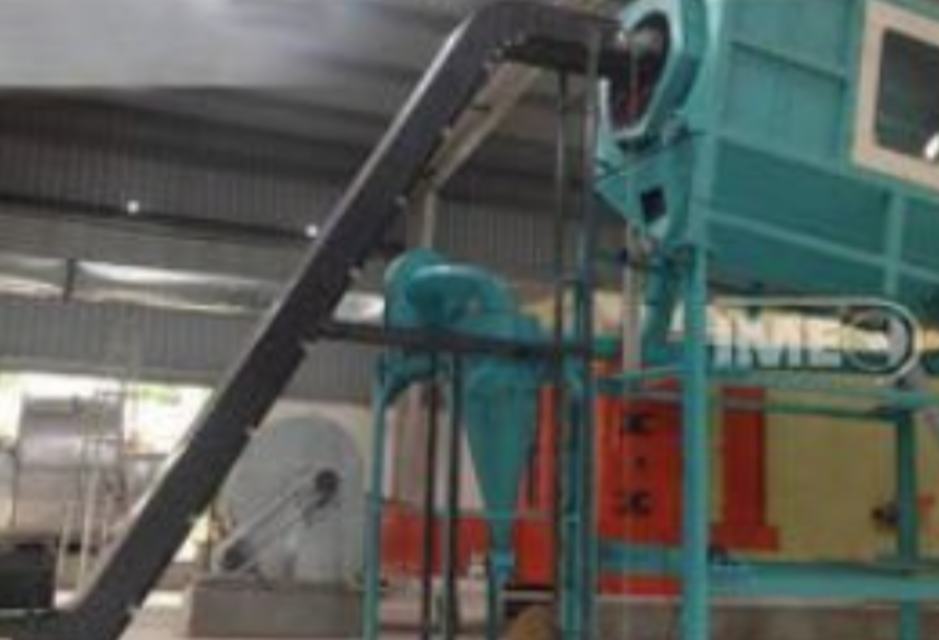

Production layouts do not always allow materials to travel in a straight horizontal line. Machines may operate at different heights, packaging equipment may require elevated feeding, and floor space may be limited. Z Type Belt Conveyors offer a practical way to move suitable products between different levels while maintaining a controlled conveying route.
Integrated Conveyors And Pacline Automation Technologies develops material-handling solutions for industrial layouts where elevation changes form part of the process. For manufacturers in Coimbatore, a Z-type configuration can help solve vertical transfer challenges without requiring an excessively long straight incline.
How the Z Configuration Works
The conveyor typically combines horizontal and inclined sections, producing a profile similar to the letter Z. Material can enter at a lower level, travel upward through the inclined section, and discharge at a higher level.
Depending on the product, the belt may require cleats or other features to reduce slipping during inclined movement.
Where It Can Be Applied
Z-type conveyors may be considered for:
- Feeding packaging machines
- Moving components to elevated workstations
- Transferring products between floor levels
- Connecting processing equipment at different heights
- Space-conscious production layouts
- Selected food and packaging applications
- Handling suitable loose or packaged materials
The product must be assessed carefully because inclination affects stability.
Problems the Design Can Solve
A conventional incline conveyor may require significant floor length to achieve the required elevation. In a facility where every square metre matters, this can interfere with aisles, machinery, or workstations.
A Z-type arrangement can create a more compact transfer path.
It may also help when the receiving equipment cannot be repositioned because of an existing production layout.
Factors to Check Before Selection
Businesses should evaluate the required vertical height, horizontal inlet and outlet lengths, product dimensions, product weight, belt speed, incline angle, and available footprint.
The characteristics of the product are particularly important. Components that roll, slide, or shift easily may require a different belt configuration from stable packaged products.
Suitable Planning for Coimbatore Plants
Many Coimbatore manufacturing facilities expand gradually, adding machines and processes to existing production areas. This can create challenging transfer routes where equipment operates at different elevations.
Z Type Belt Conveyors can provide a structured solution when vertical movement is genuinely required. A site-specific assessment helps determine belt construction, incline geometry, support structure, drive arrangement, and discharge position so the conveyor becomes part of the production flow rather than an obstacle within it.
