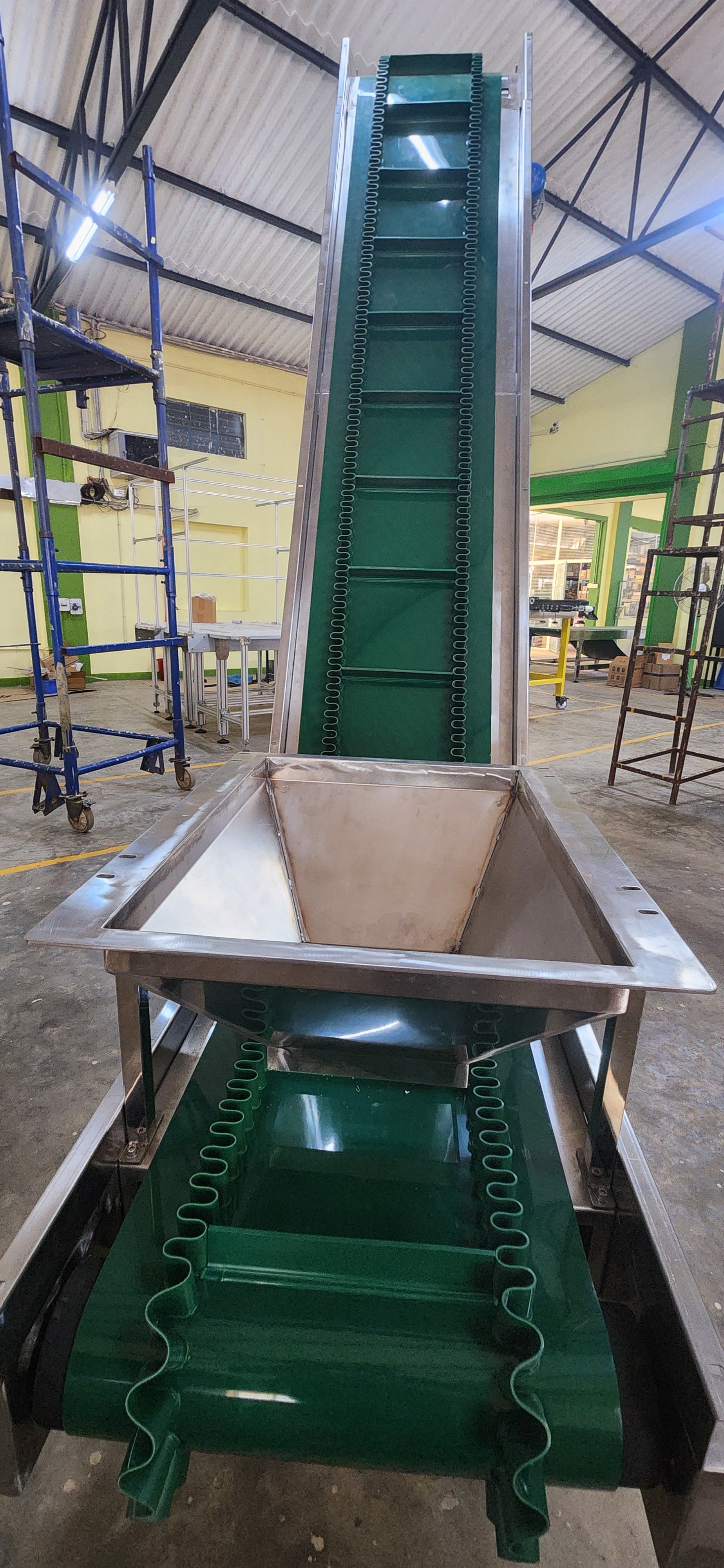

Z TYPE CONVEYOR WITH CLEAT
Description
The Z-Type Conveyor is a space-efficient material handling system designed to transport products across multiple levels using a horizontal–vertical–horizontal path. Its Z-shaped structure allows smooth elevation of materials while maintaining a compact footprint.
Commonly used for bulk or discrete items, the system ensures controlled movement with minimal spillage, making it suitable for continuous industrial operations.
⚙️ Key Features
Z-Shaped Design – Combines horizontal and vertical conveying
Space Optimization – Ideal where floor space is limited
Smooth Elevation – Stable material lifting without damage
Flexible Configuration – Custom height and length
Continuous Operation – Suitable for high throughput systems
🔄 Working Principle
Material is fed at the lower horizontal section, lifted vertically using belt or bucket mechanism, and discharged at the top horizontal section for further processing or packaging.
📊 Applications
Food & snack industries
Packaging lines
Agriculture & grains
Industrial bulk handling
