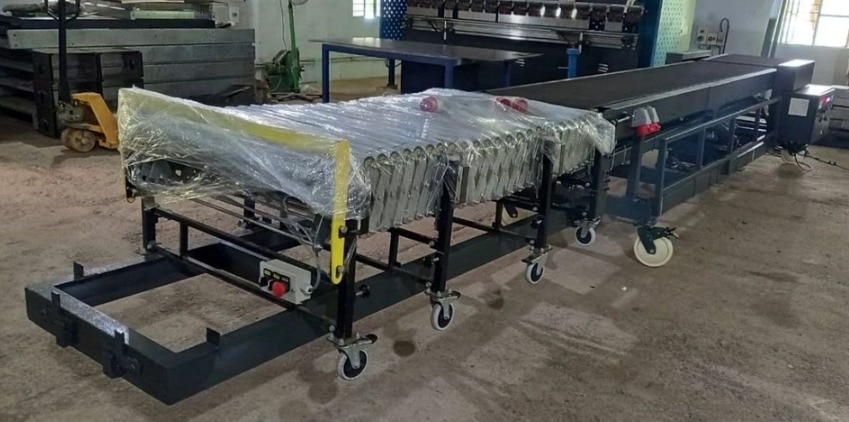

TRUCK LOADING WITH EXPANDABLE ROLLER CONVEYOR

The Expandable Roller Conveyor is a flexible, movable material handling system designed for truck loading and unloading applications. Its extendable structure allows easy adjustment of conveyor length and direction, enabling smooth transfer of goods directly from the warehouse to the vehicle.

This system is ideal for handling carton boxes, bags, and crates efficiently — reducing labor cost, improving loading speed, and ensuring safety.

🔹 Key Features

Expandable Length: Adjustable conveyor length for different truck sizes.

Flexible Movement: 360° swivel castor wheels with brakes for easy mobility.

Height Adjustable: Suitable for different loading dock or truck bed heights.

Durable Rollers: Zinc-plated steel or PVC rollers for smooth conveying.

Easy Operation: Plug-and-play design with minimal setup time.

Optional Power Drive: Available in gravity or motorized roller versions.

🔹 Technical Specifications (Typical)

Parameter Specification

Conveyor Type Gravity / Motorized Expandable Roller

Roller Diameter 50 mm / 60 mm

Roller Material Zinc-plated Steel / PVC

Conveyor Width 500 mm – 800 mm

Extended Length 3 m – 12 m (customizable)

Height Adjustment 700 mm – 1000 mm

Load Capacity 50–80 kg/m

Mobility Swivel Castors with Brake

Optional Add-ons Power Roller Drive, Side Guides, Stopper, Light System

🔹 Applications

Truck / Container Loading & Unloading

Warehouse to Vehicle Transfer

E-commerce and Parcel Handling

Distribution Centers

Manufacturing & Packaging Units

🔹 Advantages

✅ Reduces manual effort by up to 70%

✅ Speeds up truck loading/unloading time

✅ Compact & space-saving when retracted

✅ Maintenance-free and long-lasting design
