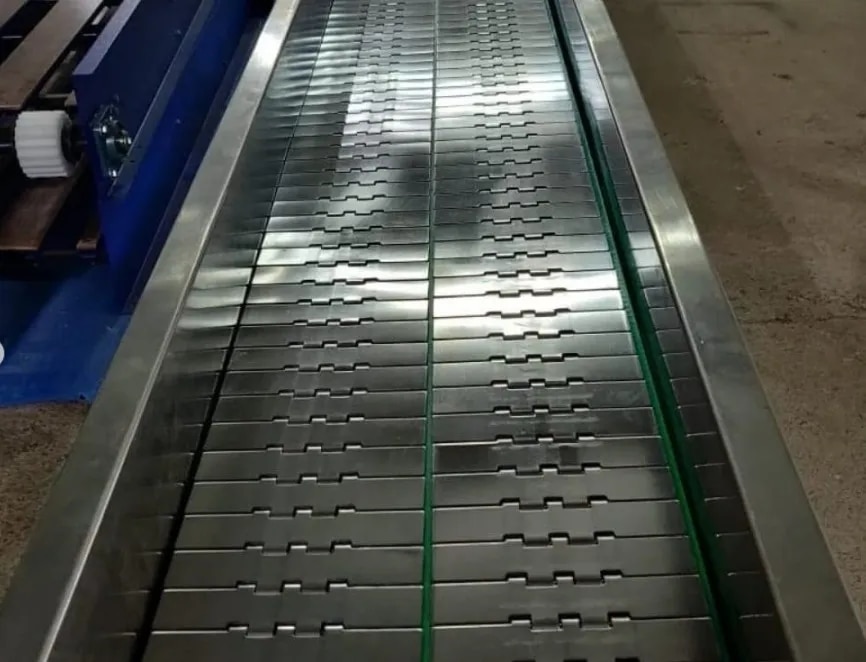

METAL SLAT CHAIN CONVEYOR

The Metal Slat Chain Conveyor is a robust and heavy-duty conveying system designed for transporting a wide range of materials — from industrial components and packed goods to heavy containers.

It uses metal slat plates or chain links mounted on precision-engineered chains, ensuring high strength, durability, and resistance to wear, even under harsh industrial environments.

This conveyor is ideal for automated assembly lines, packing sections, and material handling in industries such as automotive, foundry, food, and beverages.

🔹 Key Features

Heavy-Duty Construction: Made from stainless steel or mild steel for long life.

Continuous and Smooth Operation: Low-friction metal slats ensure steady material flow.

Custom Design: Available in straight, inclined, or curved layouts.

Hygienic & Easy to Clean: Suitable for clean-room and washdown environments (SS version).

Maintenance-Friendly: Modular chain structure allows easy replacement and service.

High Load Capacity: Designed for continuous industrial operation.

🔹 Technical Specifications (Typical)

Parameter Specification

Conveyor Type Metal Slat Chain Conveyor

Frame Material Mild Steel / Stainless Steel (SS304 / SS316)

Chain Type Slat Chain with Metal Plates

Chain Pitch 1” to 3” (Customizable)

Conveyor Width 150 mm – 1000 mm

Conveyor Length 1 m – 20 m (Customizable)

Drive Type Motorized (Gearbox with AC Motor)

Speed Range 1–30 m/min (VFD controlled)

Load Capacity Up to 100 kg/m

Mounting Floor / Overhead / Tabletop

Optional Accessories Side Guards, Hopper, Control Panel, Sensors

🔹 Applications

Automobile assembly lines

Packaging and bottling plants

Machine part transfer

Foundry and metal industries

Cooling, washing, or drying sections

Food & Beverage processing (SS model)
