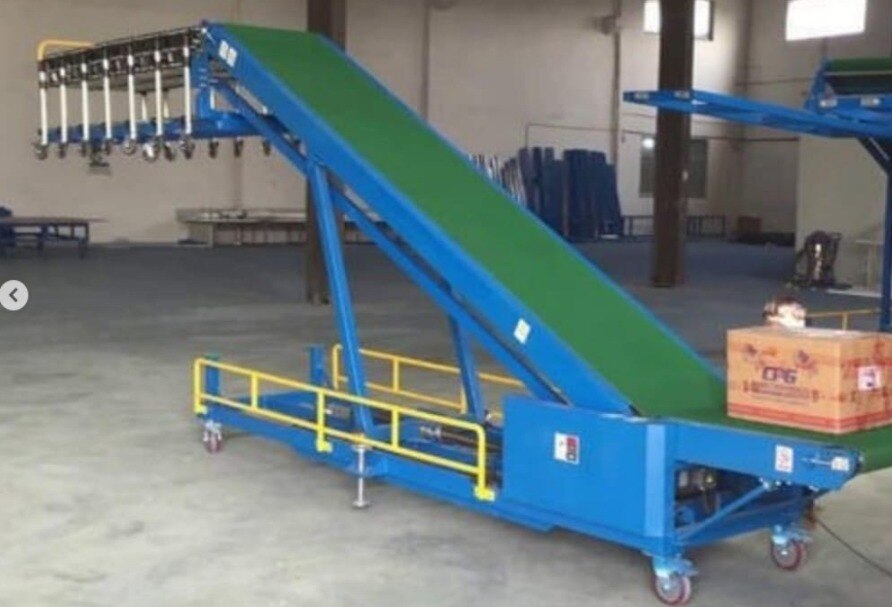

LOADING AND UNLOADING CONVEYOR

The Loading and Unloading Conveyor is a highly efficient solution designed to handle goods transfer between trucks, containers, or warehouses with minimal manual effort. It automates the loading and unloading process, reducing time, labor, and operational costs while ensuring smooth material flow.

Key Features:

🔹 Adjustable Length & Height: Extendable sections for flexible operation during truck loading and unloading.

🔹 Forward & Reverse Movement: Dual-direction control for easy loading and unloading.

🔹 Telescopic or Expandable Type: Available in both powered and gravity models.

🔹 VFD Speed Control: Smooth speed adjustment to suit product type and handling requirements.

🔹 Ergonomic Design: Reduces manual strain and improves safety during material transfer.

🔹 Heavy-Duty Construction: Rugged steel frame for long-lasting performance.

🔹 Plug-and-Play Setup: Easy installation with minimal maintenance needs.

Technical Specifications (Example):

Parameter Specification

Conveyor Type Belt / Roller / Telescopic / Expandable

Frame Material Mild Steel / Stainless Steel

Belt Material PVC / PU / Rubber

Conveyor Length 3 – 12 meters (customizable)

Height Adjustment Manual / Hydraulic / Motorized

Belt Speed 5 – 30 m/min (adjustable via VFD)

Load Capacity Up to 80 kg/m

Power Supply 230V / 415V AC

Mobility Fixed or with Swivel Castor Wheels

Applications:

Truck and container loading/unloading

Warehouse and dispatch sections

E-commerce and logistics hubs

FMCG, food processing, and packaging industries

Courier and parcel handling centers
