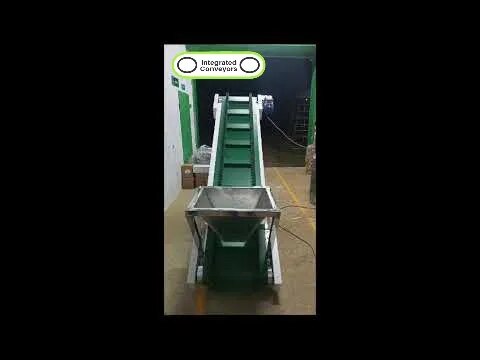

INCLINED CLEAT WITH SIDE WALL BELT CONVEYOR

🔷 INCLINED CLEAT WITH SIDEWALL BELT CONVEYOR

Description:

The Inclined Cleat with Sidewall Belt Conveyor is specifically engineered for vertical or steep inclined material transfer in a compact footprint. It features a corrugated sidewall belt with precision-molded cleats (flights) that form compartments to securely transport granular, powdered, or small components without spillage or rollback.

This conveyor is ideal for industries that require safe, space-saving, and efficient upward or downward movement of materials across different levels.

---

✅ Key Features:

🔹 Inclined & Vertical Transfer: Designed to operate efficiently at angles up to 90°

🔹 Cleats + Sidewalls: Prevent material rollback and side spillage during elevation

🔹 Compact Design: Replaces bulky inclined conveyors with a smaller footprint

🔹 Food & Industrial Grade Options: Available in FDA-approved PU belts or rugged rubber belts

🔹 Custom Configurations: Supports S-type, Z-type, or straight inclines

---

⚙️ Technical Specifications:

📏 Belt Width: 300 mm to 1000 mm

⛰️ Inclination Angle: 30° to 90°

⛓️ Cleat Height: 30 mm to 100 mm

📐 Sidewall Height: 40 mm to 150 mm

⚙️ Drive Type: Geared motor with head or bottom drive

🧱 Frame Material: MS powder-coated / SS304 / Aluminum profile

⚡ Power Supply: 3-phase, 415V AC

---

🔧 Optional Features:

🔸 Feeding hopper with vibratory or rotary feeder

🔸 Discharge chute with diverter

🔸 Dust cover or enclosure

🔸 PLC control integration for automatic start/stop

🔸 Anti-static or oil-resistant belts (as per industry)

---

🏭 Applications:

🌾 Grains, Pulses, and Food Powders

🧃 Snacks, Spices, Salt, Sugar Transfer

🏭 Plastic Granules, Chemicals, and Fertilizers

📦 Carton and Pouch Elevation in Packaging Lines

🧴 Pharmaceutical and Cosmetic Industries
