CURVE 180° POWER TURN MODULAR BELT CONVEYOR WITH ASSEMBLY

CURVE 180° POWER TURN MODULAR BELT CONVEYOR WITH ASSEMBLY

Precision Curve Handling | Modular Assembly | Smooth Product Transfer

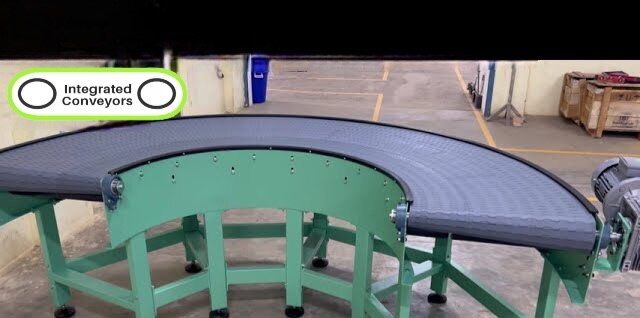

The Curve 180° Power Turn Modular Belt Conveyor with Assembly is a specially engineered solution to change the direction of product flow by 180 degrees without interrupting the process. Designed with modular plastic belts and a precision frame structure, it ensures smooth, reliable motion—perfect for compact spaces and U-turn conveyor layouts.

🔧 Assembly Description:

Frame: Heavy-duty Mild Steel (MS) Powder Coated or Stainless Steel (SS304), modular welded design

Supports: Height-adjustable legs with vibration-dampening pads

Conveyor Belt: Food-grade modular plastic chain belt with interlocking links

Drive System: Geared motor with Variable Frequency Drive (VFD) for controlled speed

Bearings & Pulleys: Sealed-for-life bearings with low-maintenance curved sprockets

Side Guides: Adjustable SS or polycarbonate for product containment during turning

Safety Covers: Provided over moving parts for operational safety

⚙️ Key Features:

🔄 180° curved modular belt design

🔗 Modular construction for easy assembly/disassembly

⚙️ Smooth & silent drive system with torque control

🛠️ Low maintenance with easy belt replacement

📦 Applications:

Food & Beverage Plants – biscuit, bottle, snack lines

Packaging Units – cartons, pouches, boxes

E-commerce Warehousing – returns and dispatch U-turns

Pharmaceuticals & Cosmetics – high hygiene conveyor lines

Assembly Lines – small goods return loops

✅ Benefits:

✅ Reduces Floor Space Requirements

✅ Modular Parts – Easy to Assemble, Maintain & Expand

✅ Eliminates Transfer Gaps & Reduces Product Damage

✅ Customizable Dimensions & Speed Settings
