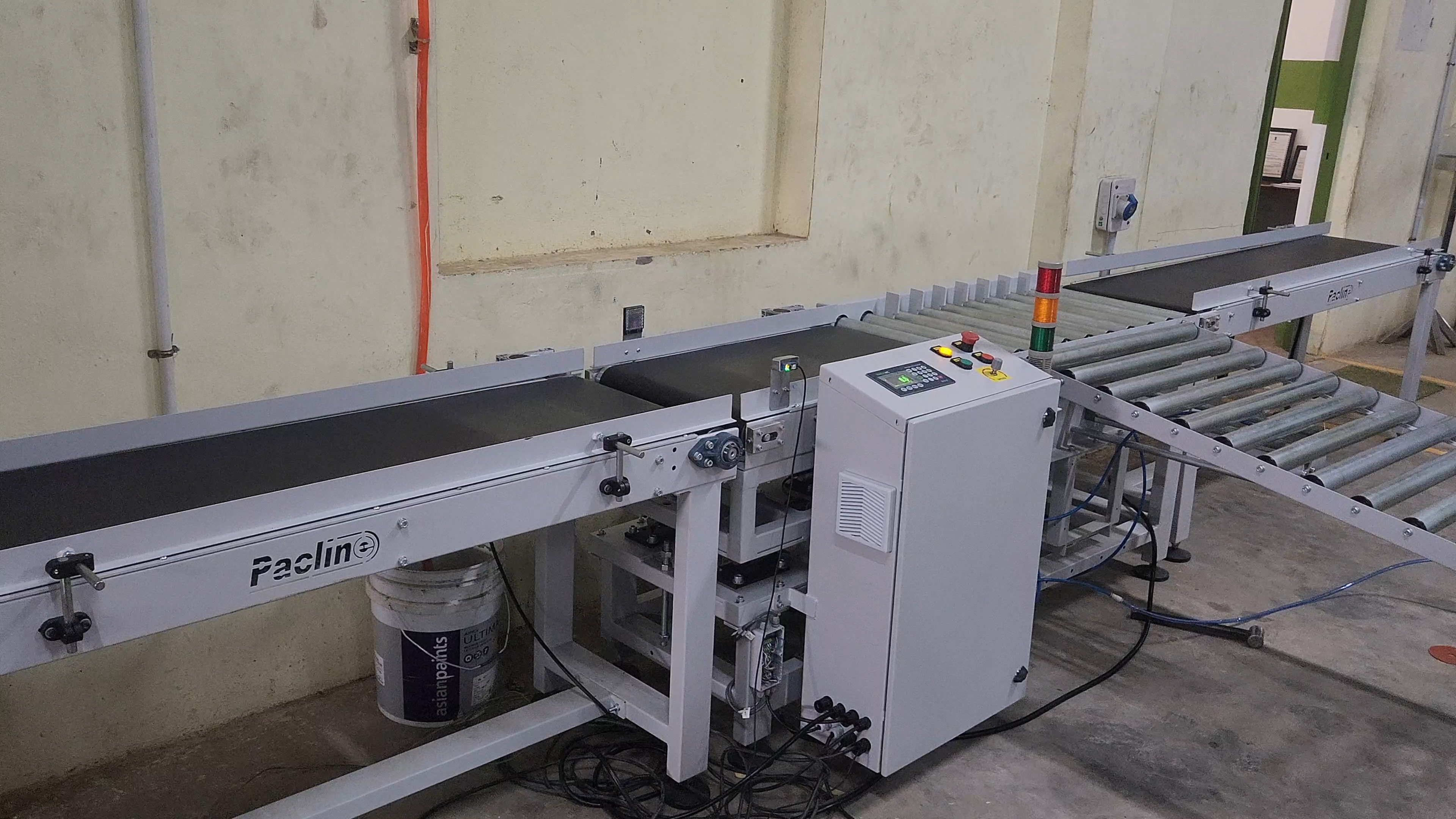

Checkweigher with Rejection Conveyor
Description
The Checkweigher with Rejection Conveyor is a high-precision weighing system designed to automatically check the weight of products in motion and reject underweight or overweight items. Ideal for packaging, food, pharmaceutical, and manufacturing industries, this system ensures 100% quality control and compliance with weight regulations.
Equipped with advanced load cell technology and a durable conveyor structure, it provides accurate, fast, and reliable weighing performance even in continuous production lines. The rejection system (flap, pusher, or air type) efficiently removes non-conforming products without interrupting production flow.
Key Features:
High-speed dynamic weighing with excellent accuracy
Automatic rejection mechanism (air, pusher, or flap type)
Stainless steel construction – corrosion resistant & easy to clean
User-friendly touch screen display for operation and data control
Compact modular design for easy integration into existing lines
Adjustable conveyor speed and product height
Data recording & reporting capability (optional)
Applications:
Food & Beverage Packaging
Pharmaceutical Bottling & Blister Packs
Cosmetic & Chemical Industries
FMCG and Automotive Components
Technical Specifications:
Parameter Specification
Weighing Range 10g – 10kg (customizable)
Accuracy ±0.5g to ±2g (depending on speed/product)
Conveyor Speed Up to 60 m/min
Display 7” Touch Screen (HMI)
Power Supply 230V AC, 50Hz
Material SS304 / MS Powder Coated
Reject System Air Jet / Pusher / Flap Type
Data Output USB / Ethernet (optional)
