conveyor

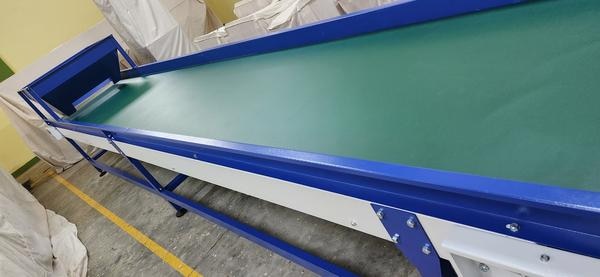

A Flat Belt Conveyor is a reliable and efficient material handling solution designed for smooth and continuous transportation of goods across various industrial applications. It features a durable, continuous flat belt driven by a motorized pulley system, ensuring consistent movement of materials from one point to another. Constructed with a robust frame and high-quality belt materials such as PVC, rubber, or fabric, the conveyor is suitable for handling light to medium loads with ease. Its simple design allows for easy installation, low maintenance, and long operational life. This conveyor system is widely used in industries such as manufacturing, packaging, warehousing, food processing, and logistics for transporting boxes, components, and bulk items. It can be customized in terms of length, width, speed, and load capacity to meet specific operational requirements. Key Features: Smooth and stable material handling Energy-efficient operation Low noise and minimal maintenance Customizable design (size, speed, belt type) Suitable for horizontal and slight inclined movement Applications: Assembly lines Packaging units Sorting and distribution centers Food and beverage industry

An SS expandable conveyor is a flexible, gravity-driven conveyor made using stainless steel rollers and scissor-type structure. It expands, contracts, and bends to fit your workspace instead of forcing you to redesign your layout. If you're still using fixed conveyors where layout changes every few months, you're wasting money. This exists to solve that. Where it’s used (real-world, not theory) Warehouse loading/unloading (trucks, containers) Packaging & dispatch lines Courier / logistics hubs Temporary production setups Food / pharma industries (because SS = hygiene) Key Features (that actually matter) Expandable length → Adjust from compact to full length in seconds Flexible path → Can curve, zig-zag, or go straight Gravity-based → No motor needed (less maintenance) Lockable wheels → Easy movement + stable during operation Stainless steel build → Corrosion-resistant, washable Typical Specifications Material: SS 202 / SS 304 (don’t cheap out—use 304 for food/pharma) Roller width: 300 mm – 800 mm Expanded length: 3 m – 15 m (customizable) Load capacity: 50–100 kg per meter Height adjustment: Yes (usually screw or telescopic legs)

Bag Stacker Conveyor is designed to transport and stack filled bags in an organized manner for storage or dispatch. It reduces manual handling, improves productivity, and ensures uniform stacking of bags in warehouses and production units. Key Features Heavy-duty belt suitable for high-load bag handling Adjustable height and inclination for different stacking levels Smooth and controlled material flow to avoid bag damage Robust MS/SS structure for long service life Easy integration with bagging machines Low maintenance and energy-efficient operation Technical Specifications Capacity: Up to 50 kg per bag (customizable) Belt Width: 400 mm – 800 mm Length: As per requirement Height Adjustment: Manual or motorized Drive: Geared motor (0.5 HP – 3 HP depending on load) Structure: Mild Steel / Stainless Steel Belt Type: PVC / Rubber Applications Cement industries Rice & flour mills Fertilizer plants Warehousing & logistics Packaging industries

Aluminium Profile Flat Belt Conveyor The Aluminium Profile Flat Belt Conveyor is a reliable and efficient material handling solution designed for smooth and continuous product transfer in industrial environments. Manufactured using high-quality aluminium profiles, the structure is lightweight, corrosion-resistant, and built for long-term durability. The flat belt surface ensures stable movement of products, making it ideal for handling items of various shapes and sizes without damage or slippage. Engineered for precision and consistency, the conveyor delivers low-noise operation with minimal vibration, supporting both manual and automated production lines. Its modular construction allows easy customization in length, width, and height to match specific operational requirements. This conveyor is widely used across industries where clean, efficient, and controlled product flow is essential. Key Features Strong and lightweight aluminium profile frame Smooth flat belt for stable product movement Low-noise and vibration-free operation Corrosion-resistant and low maintenance Modular design for easy customization Suitable for continuous and high-speed operations Applications Assembly lines Packaging and sorting systems Inspection and testing lines Food, electronics, and manufacturing industries Optional Add-ons Variable speed control (VFD) Side guides and product stoppers Sensor and automation integration Stainless steel or food-grade belt options

Aluminium Profile Assembly Line Conveyor with Side Table The Aluminium Profile Assembly Line Conveyor with Side Table is a highly efficient and ergonomic solution designed for streamlined production and assembly operations. Constructed using premium-grade aluminium profiles, the conveyor offers a strong, corrosion-resistant, and lightweight framework. The integrated side tables provide dedicated workspace for operators, enabling smooth assembly, inspection, and handling without interrupting the product flow. The conveyor system ensures consistent and controlled movement of materials using a precision belt or roller mechanism. Its modular design allows easy customization and future expansion, making it suitable for various industrial applications. With improved operator accessibility and reduced manual movement, this system significantly enhances productivity, workflow efficiency, and workplace organization. Key Features Durable and lightweight aluminium profile structure Integrated side tables for operator convenience Smooth, stable, and low-noise operation Modular and easily extendable design Corrosion-resistant with minimal maintenance Supports additional accessories and automation Applications Assembly and production lines Quality inspection stations Packaging and sorting units Electronics and automotive industries Optional Add-ons LED lighting and power sockets Tool holders and overhead rails Variable speed drive (VFD control) ESD-compatible working surfaces

A flat belt conveyor in waste management is used to transport mixed or segregated waste across sorting, inspection, and processing stations. ⚙️ Key Components (Don’t ignore these) Frame: MS powder-coated or SS (if wet waste involved) Belt Type: PVC / PU → light dry waste Rubber → heavy, abrasive waste Oil-resistant belt → food / organic waste Drive System: Geared motor (0.5 HP to 5 HP depending on load) Rollers: Heavy-duty idlers (dust + impact resistant) Side Walls / Skirts: Mandatory — waste WILL fall off otherwise Hopper (Optional): For dumping waste onto belt 📏 Typical Specifications Width: 600 mm – 1200 mm Length: 3 m – 20 m Height: 700 mm – 1000 mm (ergonomic for workers) Speed: 10 – 30 m/min (slow for sorting) Load Capacity: 50 – 200 kg/m

A flat belt conveyor with hopper is a system where: A hopper (loading bin) holds bulk material Material is fed onto a flat belt conveyor The belt transports it to the next stage (machine, packing, or storage) Main Components Hopper MS / SS fabrication Can be customized (open, closed, vibratory feed optional) Flat Belt Conveyor PVC / PU / rubber belt Supported by rollers or slider bed Drive System Motor (0.5–3 HP typical, depends on load) Gearbox (ratio based on speed requirement) Frame Structure MS powder-coated / SS Adjustable height option Types (don’t mix them blindly) Horizontal with hopper → for simple feeding Inclined with hopper → for lifting material Cleated belt with hopper → for loose or falling materials Vibratory hopper + belt → for controlled feeding Where it’s used Food processing (grains, vegetables) Packaging lines Pharma & chemical industries Scrap / parts handling in manufacturing

telescopic conveyor is an extendable conveyor used to load/unload trucks fast. It slides in and out like a telescope—simple concept, massive productivity gain. What it actually does Extends inside the truck/container so workers don’t carry loads manually Reduces loading time by 30–60% if used properly Cuts labor fatigue → fewer errors, less damage If you're still loading manually, you're wasting time and money. Period. Key parts (don’t ignore these) Base frame – fixed structure at dock Telescopic sections – 2 to 5 extendable stages Belt or roller system – depends on product Drive motor & gearbox – controls movement Hydraulic/electric lift (optional) – height adjustment

A Flat Inclined Cleat Belt Conveyor is designed to transport materials upward at an angle without slippage or rollback. Equipped with cleats on a flat belt, it ensures secure grip and controlled movement of products, even on steep inclines. This system is ideal for handling loose, packed, or irregular materials where standard flat conveyors fail due to product slipping. Key Features Cleated Belt Design – Prevents material rollback on incline Inclined Structure – Efficient vertical movement between levels Flat Belt Base – Stable and uniform product support Heavy-Duty Construction – Suitable for continuous industrial use Custom Cleat Height & Spacing – Based on product type Low Maintenance – Reliable and long service life Applications Packaging and loading lines Food processing (grains, vegetables, snacks) Industrial material handling Warehouses and logistics Recycling and scrap handling

A Stainless Steel (SS) Spiral Conveyor is a hygienic, space-efficient conveying system designed for vertical transportation of products in clean and controlled environments. Built using high-grade stainless steel, it ensures corrosion resistance, easy cleaning, and long-term durability. This system is ideal for industries where hygiene and product safety are non-negotiable, while maintaining continuous and smooth material flow. Key Features Food-Grade Stainless Steel Construction (SS 304 / SS 316) Corrosion & Rust Resistant – Perfect for wet and washdown areas Hygienic Design – Easy to clean, prevents contamination Space Optimization – Vertical movement saves floor area Continuous Operation – High efficiency, no production delay Custom Design – Height, diameter, and belt type as per requirement Applications Food processing & packaging Pharmaceutical manufacturing Dairy & beverage plants Bakery & confectionery units Cleanroom operations Technical Specifications Material: SS 304 / SS 316 Structure: Modular spiral design Belt Type: Modular plastic / SS slat / wire mesh Height: Custom-built (single/multi-level) Speed: Variable (as per product flow) Drive: Energy-efficient geared motor

Spiral Conveyor is a compact, high-performance material handling system designed to transport products vertically while minimizing floor space. It is ideal for industries where space optimization and continuous flow are critical. Built with a robust structure and precision-engineered components, the spiral conveyor ensures smooth, stable, and efficient movement of products between different levels without interruptions. Key Features Space-Saving Design – Maximizes vertical space, reduces factory footprint Continuous Operation – Handles high throughput without stopping Smooth Product Handling – No damage, even for delicate items Customizable Heights & Diameters – Designed as per your layout Strong Construction – Available in MS / SS for durability and hygiene Low Maintenance – Simple mechanism, long service life Applications Food & Beverage industry Packaging lines Pharmaceutical production FMCG and logistics Warehouse automation Technical Highlights Load capacity: As per requirement Belt type: Modular / slat / roller (based on product) Height: Custom (up to multi-floor levels) Speed: Adjustable Drive system: Geared motor with optimized power consumption

This isn’t just a conveyor with a weighing scale slapped on. A checkweigher system is a precision setup designed to measure product weight in motion and reject anything out of spec. If you build it casually, it will fail. Period. What it actually is A flat belt conveyor integrated with a dynamic checkweigher that: Weighs products while moving Compares with preset limits Automatically rejects underweight / overweight items Used in industries where compliance = money (food, pharma, FMCG).
