Flat Rough Top Belt Conveyor The Flat Rough Top Belt Conveyor is designed for efficient and safe transport of products on inclined or flat surfaces where grip is critical. The rough textured surface of the belt offers excellent slip resistance, making it ideal for transporting bags, cartons, boxes, and other irregular or lightweight items without slippage. Key Features: Belt Type: Rough top rubber or PVC belt for superior grip Frame: Mild Steel / Stainless Steel / Aluminium profile Drive System: Gearbox motor with direct or chain drive Load Capacity: Customizable (typically up to 50–100 kg/m) Speed: Variable speed options available (0.5–1.5 m/s) Inclination: Flat or inclined configuration up to 30° Support: Adjustable height with lockable caster wheels or fixed stands Applications: Warehouse and logistics Packaging lines Assembly units Carton and box handling Material transfer in inclined sections Advantages: Anti-slip surface ensures product stability Easy maintenance and long belt life Suitable for dry and semi-wet environments Optional side guides for product alignment

🔷 CUT RESISTANT BELT CONVEYOR Description: The Cut Resistant Belt Conveyor is a heavy-duty conveying system engineered for abrasive, sharp, or jagged materials that may damage standard belts. It features a special rubber or composite belt reinforced with cut-resistant layers, making it ideal for harsh industrial applications such as metal scrap, glass, stones, and construction debris. Built to deliver high durability and extended service life, this conveyor is commonly used in metal processing, recycling, quarrying, and heavy engineering environments. --- ✅ Key Features: 🔹 High Cut Resistance: Designed to handle sharp-edged materials without belt tearing 🔹 Abrasion-Resistant Surface: Withstands continuous friction and impact 🔹 Reinforced Belt Structure: Fabric or steel mesh layers for added strength 🔹 Low Maintenance: Extended lifespan reduces downtime and replacement cost 🔹 Heavy-Duty Frame: Built for extreme operating conditions --- ⚙️ Technical Specifications: 📏 Belt Width: 300 mm to 1500 mm 📦 Load Capacity: Up to 1000 kg/meter (customized based on design) ⛓️ Belt Material: Multi-ply rubber with cut-resistant compound 🧱 Frame Material: Heavy-duty MS (powder-coated or painted) ⚙️ Drive Type: Gearbox with direct/indirect drive ⏩ Speed: 5–30 m/min (VFD optional) ⚡ Power Supply: 3-phase, 415V AC --- 🔧 Optional Features: 🔸 Impact bars or rollers at loading point 🔸 Skirt board sealing for dust control 🔸 Scraper and belt cleaners 🔸 Side guards and top covers 🔸 Magnetic separator or metal detector integration --- 🏭 Applications: 🛠️ Metal Scrap Handling & Steel Plants 🧱 Glass & Ceramic Industries 🪨 Stone, Sand, and Gravel Transfer 🔄 Recycling & Waste Management Facilities 🏗️ Demolition & Construction Material Transfer

🔷 INCLINED CLEAT WITH SIDEWALL BELT CONVEYOR Description: The Inclined Cleat with Sidewall Belt Conveyor is specifically engineered for vertical or steep inclined material transfer in a compact footprint. It features a corrugated sidewall belt with precision-molded cleats (flights) that form compartments to securely transport granular, powdered, or small components without spillage or rollback. This conveyor is ideal for industries that require safe, space-saving, and efficient upward or downward movement of materials across different levels. --- ✅ Key Features: 🔹 Inclined & Vertical Transfer: Designed to operate efficiently at angles up to 90° 🔹 Cleats + Sidewalls: Prevent material rollback and side spillage during elevation 🔹 Compact Design: Replaces bulky inclined conveyors with a smaller footprint 🔹 Food & Industrial Grade Options: Available in FDA-approved PU belts or rugged rubber belts 🔹 Custom Configurations: Supports S-type, Z-type, or straight inclines --- ⚙️ Technical Specifications: 📏 Belt Width: 300 mm to 1000 mm ⛰️ Inclination Angle: 30° to 90° ⛓️ Cleat Height: 30 mm to 100 mm 📐 Sidewall Height: 40 mm to 150 mm ⚙️ Drive Type: Geared motor with head or bottom drive 🧱 Frame Material: MS powder-coated / SS304 / Aluminum profile ⚡ Power Supply: 3-phase, 415V AC --- 🔧 Optional Features: 🔸 Feeding hopper with vibratory or rotary feeder 🔸 Discharge chute with diverter 🔸 Dust cover or enclosure 🔸 PLC control integration for automatic start/stop 🔸 Anti-static or oil-resistant belts (as per industry) --- 🏭 Applications: 🌾 Grains, Pulses, and Food Powders 🧃 Snacks, Spices, Salt, Sugar Transfer 🏭 Plastic Granules, Chemicals, and Fertilizers 📦 Carton and Pouch Elevation in Packaging Lines 🧴 Pharmaceutical and Cosmetic Industries

🔷 SPIRAL ROLLER CONVEYOR Description: The Spiral Roller Conveyor is a vertical material handling system designed to move cartons, boxes, totes, and similar items between multiple floor levels in a continuous spiral path. It combines the space-saving benefits of vertical conveyors with the smooth handling capabilities of rollers, making it ideal for applications where space is limited but elevation change is needed. Built for durability and flexibility, spiral roller conveyors are often used in warehousing, distribution, food, and packaging industries. --- ✅ Key Features: 🔹 Space-Saving Vertical Design: Elevates products while occupying minimal floor space 🔹 Gravity or Powered Options: Available in gravity (downward) or motorized (upward/downward) versions 🔹 Smooth & Controlled Flow: Ideal for fragile or sensitive packages 🔹 Continuous Operation: Non-stop product flow with minimal supervision 🔹 Modular & Compact: Easy to integrate with existing conveyor lines --- ⚙️ Technical Specifications: 📦 Load Capacity: Up to 30 kg per meter (gravity) or 50 kg per unit (motorized) ⏫ Height: 2 to 6 meters (customizable) 🔄 Roller Type: Steel / PVC / Rubber-coated rollers ⏩ Speed: Up to 30 m/min (motorized) 🧱 Frame Material: MS powder-coated / SS304 / Aluminum 🔌 Drive Type (if powered): Geared motor with chain or belt transmission --- 🔧 Optional Features: 🔸 Entry/exit guides for product alignment 🔸 Protective side guards 🔸 Infeed/outfeed conveyors 🔸 Safety covers and emergency stop system 🔸 Custom slope angle (typically 12°–18°) --- 🏭 Applications: 📦 Warehousing and Distribution Centers 🚚 Truck Dock Integration (ground to mezzanine) 🛍️ E-commerce Order Fulfillment Lines 🧴 Packaging and Carton Handling Systems 🏢 Factory Automation Between Floors or Departments

A heavy-duty inclined conveying system using interlocking modular plastic belt segments instead of rubber belt. Designed to move products vertically or at an angle without slipping, spilling, or damaging items. Used where normal belts fail — wet products, oily parts, loose components, food packs, bottles, cartons. Why industries choose this (real selling points) No belt tracking headache – modules don’t wander like rubber belts Handles wet & oily products – perfect for food & machining plants Easy cleaning – remove few pins → wash → reinstall (minutes, not hours) Zero product rollback – cleats & sidewalls hold material on incline Long life – only damaged module replaced, not full belt Low maintenance downtime – production doesn’t stop Construction Frame: MS powder coated / SS 304 Belt: Modular plastic (PP / POM / HDPE options) Side guides: Adjustable UHMW / SS rails Drive: Geared motor drive (bottom or top drive option) Support: Heavy duty adjustable legs Control: Forward / Reverse with VFD optional

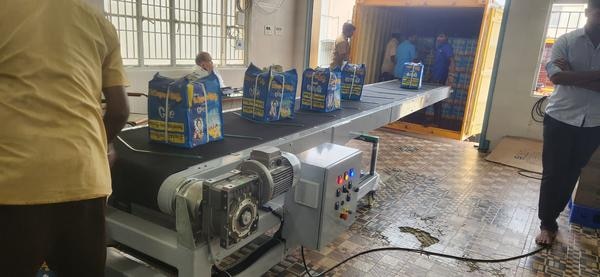

A Truck Loading Conveyor is designed to transfer cartons, bags, and parcels directly from warehouse floor into the truck body in a smooth, continuous flow. Instead of manual carrying and throwing, materials move safely on a powered belt — reducing loading time and operator fatigue. Why industries use it Faster loading & unloading turnaround Reduced manpower requirement No product dropping or tearing Consistent loading height for any vehicle Lower truck waiting charges Main features Adjustable height to suit different truck levels Forward & reverse running operation Heavy-duty endless belt for continuous duty Mobile unit with lockable wheels Side guards to prevent falling material Emergency stop safety control Construction details Rugged MS fabricated structure Industrial PVC / Rubber belt Geared motor drive Screw jack / hydraulic height adjustment Easy maintenance design

🔷 CONTAINER LOADING CONVEYOR Description: The Container Loading Conveyor is a robust, mobile material handling system designed to quickly and efficiently load or unload containers and trucks. It is especially useful in logistics, warehouses, and shipping centers where manual loading is time-consuming and labor-intensive. Built for heavy-duty operation, this conveyor greatly reduces manpower requirements, speeds up loading processes, and ensures safety. Available in fixed or telescopic designs, it can be adjusted in height and length to suit various container sizes and loading conditions. --- ✅ Key Features: 🔹 Fast & Efficient Loading: Cuts down container loading time significantly 🔹 Adjustable Height: Manual or hydraulic lifting to match container height 🔹 Extendable/Telescopic Options: Reach deep inside containers easily 🔹 Heavy-Duty Construction: Designed to handle tough industrial environments 🔹 Mobile Design: Castor wheels or forklift pockets for easy movement --- ⚙️ Technical Specifications: 📏 Length: 4 to 12 meters (expandable / telescopic available) 📦 Load Capacity: Up to 100 kg/meter ⛓️ Belt Type: PVC / PU / Rough-top rubber belt ⏩ Speed: 10–30 m/min (variable via VFD) 📐 Height Adjustment: 600 mm to 1200 mm (manual/hydraulic) 🧱 Frame Material: MS powder-coated / SS304 ⚡ Power Supply: 230V / 415V AC, 3-phase --- 🔧 Optional Features: 🔸 Hydraulic height control 🔸 Direction control for forward & reverse belt motion 🔸 Side guards for operator and product safety 🔸 LED lighting for low-light container interiors 🔸 Integrated digital counter or weighing system --- 🏭 Applications: 🚚 Loading and Unloading of 20ft/40ft Containers & Trucks 📦 Warehouse Dispatch Areas 🏢 Logistics, Courier & Freight Companies 🧴 FMCG and E-commerce Fulfillment 🏗️ Manufacturing and Export Units

🔷 ASSEMBLY LINE BELT CONVEYOR Description: The Assembly Line Belt Conveyor is a streamlined and highly adaptable system used to facilitate continuous movement of products through various stages of manual or automated assembly operations. Built with a flat, durable belt surface, it provides smooth and controlled transfer of components, tools, or finished goods, making it ideal for high-efficiency production environments. Whether you're assembling electronic parts, appliances, automotive components, or packaging goods, this conveyor is essential for boosting speed, accuracy, and worker productivity on the factory floor. --- ✅ Key Features: 🔹 Flat Belt Design: Ensures smooth product flow across assembly stations 🔹 Custom Workstations: Can be integrated with tables, lights, tools, and fixtures 🔹 Variable Speed Drive: Easily adjust belt speed based on production rate 🔹 Ergonomic Setup: Operator-friendly height and layout for improved efficiency 🔹 Flexible Configurations: Available in straight, U-shaped, or loop layouts --- ⚙️ Technical Specifications: 📏 Belt Width: 300 mm to 1200 mm (customizable) ⏩ Speed: 5 to 30 m/min (adjustable via VFD) 📦 Load Capacity: Up to 100 kg/meter ⛓️ Belt Material: PVC / PU / Rubber / Anti-static belts (as per product type) 🧱 Frame Material: MS powder-coated / SS304 / Aluminum profile ⚙️ Drive Type: End / Center / Bottom drive with geared motor ⚡ Power Supply: 230V / 415V AC --- 🔧 Optional Add-ons: 🔸 LED tube lighting and overhead structure 🔸 Tool holders, bins, and power sockets 🔸 Manual or pneumatic product stoppers 🔸 PLC-based start/stop sensors 🔸 ESD-safe version for electronics assembly --- 🏭 Applications: 🔌 Electronics & PCB Assembly 🚗 Automotive Component Assembly 🧴 Consumer Goods & Cosmetics Lines 🧃 FMCG Packaging & Filling Lines 🧰 Appliances, Toys, and Small Parts Assembly

🔷 SPIRAL GRAVITY FREE FLOW ROLLER CONVEYOR Description: The Spiral Gravity Free Flow Roller Conveyor is a space-saving and cost-effective solution for downward vertical product movement using gravity. Designed with angled spiral rollers, it allows cartons, totes, and boxes to move smoothly and continuously from one floor to another without the need for power or motors. Its compact spiral structure makes it ideal for facilities with limited floor space and high vertical transport needs. Commonly used in warehousing, dispatch zones, retail logistics, and packaging lines, this conveyor enhances workflow and reduces manual handling. --- ✅ Key Features: 🔹 No Power Required: Operates entirely by gravity for energy savings 🔹 Spiral Design: Enables vertical movement while saving horizontal floor space 🔹 Smooth & Controlled Flow: Precision-angled rollers ensure safe, continuous descent 🔹 Modular & Scalable: Can be integrated into any material handling system 🔹 Low Maintenance: Simple design with minimal wear-and-tear components --- ⚙️ Technical Specifications: 📏 Height: 2 to 6 meters (customizable) 🔄 Roller Type: Zinc-plated steel / PVC / Rubber-coated 📦 Load Capacity: Up to 40 kg per unit (depending on product and pitch) 🌀 Roller Pitch: 75 mm / 100 mm / 150 mm 🧱 Frame Material: MS powder-coated / SS304 / Aluminum 📐 Spiral Slope: Typically 12°–18°, adjustable based on product type --- 🔧 Optional Features: 🔸 Entry/Exit transition rollers 🔸 Product guides or side guards 🔸 Adjustable legs or supports 🔸 Lockable castor base (for movable systems) 🔸 Safety stops or speed controllers --- 🏭 Applications: 📦 Carton and Tote Movement Between Floors 🏢 Multi-level Warehousing & Dispatch Systems 🧃 FMCG and Food Product Transfer 🛍️ Retail and E-commerce Fulfillment Centers 🏭 Assembly and Packaging Outfeed
